What is Low-Cost PCB Assembly?

Low-cost PCB assembly is the process of producing printed circuit boards and attaching components using methods that lower pricing while maintaining high quality and functional reliability. WellPCB applies advanced automation and strict process control to achieve this balance. Production uses CNC cutting for precise board profiling and high-speed pick and place machines with placement rates up to 600,000 components per hour, supporting fine pitch packages such as BGAs and QFPs.

To reduce per-board costs, low-cost PCB prototype production uses optimized panelization techniques, combining multiple designs or repeating patterns onto single panels to minimize material waste and lower machine setup time. Pre-production gerber files are reviewed using full design rule checks (DRC), identifying potential layout errors or manufacturability issues before fabrication begins.

During PCB assembly, components are mounted using automated SMT lines and through-hole processes. For soldering, nitrogen-assisted reflow ovens follow a controlled thermal profile. The preheat zone reaches 150°C to 180°C, the soak zone stabilizes between 180°C and 210°C, and peak temperatures reach 235°C to 250°C for lead-free processes. Controlled cooling ensures proper solder joint solidification and minimizes thermal stress.

Assembly accuracy is maintained at ±30µm under a 3σ process capability, which supports robust placement even for advanced PCB designs. After assembly, boards undergo automated optical inspection (AOI), X-ray examination for hidden joints, and Flying Probe electrical testing. Reliability tests, including thermal shock, impedance, and solderability assessments, confirm performance for both prototype and production quantity runs.

Our Low-Cost PCB
Assembly Capabilities

WellPCB delivers low-cost PCB assembly by combining advanced production processes with strict quality control and efficient design support. Our capabilities cover a wide range of PCB types, materials, and assembly services to meet the requirements of cost-conscious customers without sacrificing performance or reliability.

PCB Fabrication and Materials

We support PCB fabrication for prototypes, small batches, and production runs. Options include FR4, high TG FR4, halogen-free, CEM-3, and Rogers HF substrates. Boards can be produced with 1 to 64 layers, copper thickness up to 1000 μm, and finished thicknesses from 0.1 mm to 12 mm.

Minimum trace width and spacing down to 1.8 mil support complex circuit designs. Available surface finishes include HASL, lead-free HASL, OSP, immersion gold, immersion tin, and immersion silver to balance cost and performance.

SMT and Through-Hole Assembly

Our PCB assembly services cover SMT, through-hole (THT), and mixed-technology builds. Pick and place machines operate up to 60,000 chips per hour, handling fine pitch packages such as BGAs and QFPs with a placement accuracy of ±30 µm.

We also offer low-volume PCB assembly for prototype and pilot production runs, supported by fast turnaround and flexible quantity options.

Soldering Processes and Reflow Profile

Soldering uses nitrogen-assisted reflow ovens with controlled thermal profiles. Preheat zones reach 150 °C to 180 °C, soak zones stabilize between 180 °C and 210 °C, and peak temperatures range from 235 °C to 250 °C for lead-free processes. Cooling is carefully managed to prevent joint defects and mechanical stress.

Inspection and Testing

Completed PCBs undergo AOI, X-ray inspection for hidden solder joints, and electrical testing. We also perform Flying Probe, impedance, solderability, thermal shock, and metallographic section analysis based on customer requirements and PCB complexity.

Assembly Volume and Turnaround

Our factories support prototype runs as small as one board and production volumes into the thousands. Standard PCB manufacturing lead times are 5 to 6 days, with expedited options available in 24 to 48 hours. Assembly lead times vary from 4 to 25 days, depending on quantity, complexity, and part availability.

Low-Cost PCB Assembly Cost Factors

The total pricing for low-cost PCB assembly depends on several technical and production variables. Understanding these factors helps customers make cost-effective design decisions without sacrificing quality or performance.

Larger PCB sizes require more raw material and increase PCB fabrication time, raising costs.

Selecting standard FR4 or high TG FR4 substrates lowers material pricing, while specialty laminates like Rogers HF add to the total.

For cost control, WellPCB recommends limiting board dimensions and using materials stocked in-house to avoid custom sourcing charges.

The number of PCB layers and design complexity directly impact manufacturing cost.

Low-cost PCB solutions focus on prototype PCBs and small batch runs with fewer layers and standard stack-ups.

High-layer counts increase drilling, lamination, and alignment processes, raising assembly and PCB fabrication costs.

Reducing unnecessary layer counts and simplifying via structures, such as using through-hole vias instead of blind or buried, lowers expenses.

Choosing readily available, non-specialized components reduces pricing and avoids supply chain delays.

WellPCB advises using standard package sizes and avoiding fine pitch parts when possible, as complex placements increase assembly time and inspection requirements.

Cost-effective sourcing is also supported by WellPCB’s supplier network, reducing markups on components.

Tight tolerances for circuit trace width, spacing, and hole size can increase manufacturing difficulty.

For example, designs with minimum line widths above 6 mil and standard copper weights (1 or 2 oz) keep PCB fabrication simpler and lower-cost.

Avoiding excessive impedance control requirements can also reduce processing steps and inspection costs.

Higher quantity orders benefit from economies of scale.

Small orders incur setup costs that are distributed across fewer boards, raising per-unit pricing.

Combining multiple prototype builds into panelized production runs is one method WellPCB uses to reduce per-board costs for lower volumes.

Standard finishes like HASL or lead-free HASL provide the most economical solder surfaces.

More complex finishes, such as immersion gold or immersion silver, improve performance but increase costs.

WellPCB recommends matching the surface treatment to the application requirements and selecting basic finishes for prototype or budget-sensitive projects.

File Preparation for Low-Cost
PCB Assembly

Accurate file preparation is key to reducing low-cost PCB assembly expenses and avoiding delays. WellPCB guides customers through every documentation step to streamline order processing and support efficient assembly services.

Every PCB project requires precise documentation. Gerber files, including drill and map layers, provide all the data needed to manufacture

the printed circuit board.

A clean BOM (Bill of Materials), usually in CSV format, should list Designator, Footprint, Comment, and Manufacturer Part Number to support accurate component sourcing.

The CPL (Pick and Place) file must contain accurate Designator, Mid X, Mid Y, Rotation, and Layer data for pick and place programming. Complete, accurate files prevent assembly errors, minimize rework, and avoid added costs or production delays. WellPCB encourages using CAD templates and automation features during PCB design to improve documentation quality.

A clean BOM controls PCB and assembly costs by standardizing components and identifying cost-effective alternatives. Including Designator, Footprint,

Comment, and verified Part Numbers ensures compatibility and reduces sourcing complexity.

BOM scrubbing eliminates obsolete or unavailable parts, while multiple approved sources increase availability and pricing leverage. Manual review during BOM preparation catches errors before they impact PCB assembly or lead time.

The CPL file must include precise location data (Mid X, Mid Y), orientation (Rotation), and Layer assignments. These values guide the pick-and-place machines

for accurate placement during PCB assembly.

Files can be reviewed with programs like Gnumeric or Excel and saved in XLSX if required. Manual verification confirms that component orientations and positions match the intended PCB layout, preventing costly assembly mistakes and rework.

DFM (Design for Manufacturability) checks are essential before file submission. Verifying footprint accuracy prevents placement issues.

DFM (Design for Manufacturability) checks are essential before file submission. Verifying footprint accuracy prevents placement issues. Adequate clearance between components supports SMT and through-hole assembly tools. Thermal relief design reduces the risk of warping during reflow oven soldering.

Including test access points simplifies electrical validation, improving reliability and lowering post-production inspection time.

Standard PCB manufacturing times at WellPCB are 5 to 6 days, with expedited prototype production available in 24 to 48 hours for urgent needs.

For complex designs (1 to 12 layers), PCB production can be completed in 72 hours, while multilayer builds (12+ layers) may require up to 120 hours.

Assembly lead times range from 4 to 25 days, depending on complexity and quantity. Efficient timeline management supports fast prototype iterations without sacrificing quality.

WellPCB offers quick-turn and rush services for time-sensitive projects. While rush orders increase pricing, pre-planning and early design

verification can minimize these costs.

Expedited services may impose limits on board complexity and component availability. Selecting standard materials, common components, and precise documentation helps maintain rapid turnaround even under tight deadlines.

Early design checks reduce revision cycles. Selecting components with broad availability avoids sourcing delays. Clear, complete documentation

supports fast PCB assembly services and reduces the risk of production hold-ups.

Maintaining communication with WellPCB throughout the process helps align expectations and manage production timelines effectively.

Materials for Low-Cost
PCB Assembly

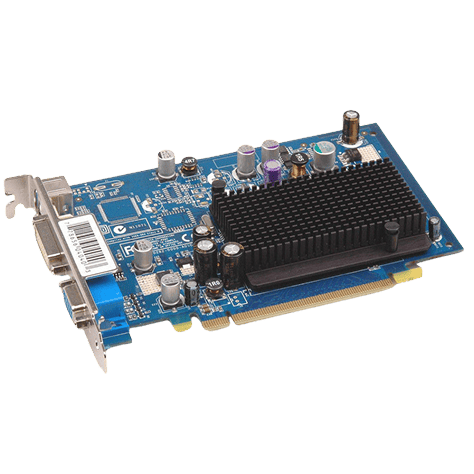

Material selection is important in determining low-cost PCB assembly pricing and long-term performance. WellPCB supports a range of standard and specialty materials to balance cost control with application requirements.

Material Category	Standard Options (Cost-Effective)	Specialty Options (Higher Cost)	Cost Impact Considerations
Substrates	FR4, High TG FR4, CEM-3, Polyester	Polyimide, Rogers HF, Halogen-Free High-Freq	Specialty substrates increase material and processing costs.
Copper Foils	1 oz, 2 oz	3 oz to 5 oz	Heavier copper improves performance but adds cost and weight.
Solder Mask	Green, Black, Blue, White	Red, Yellow, Matte Finishes	Specialty colors increase labor and processing time.
Silkscreen	Standard white or black inks	Specialty inks or treated finishes	Custom silkscreen treatments increase cost.
Surface Finishes	OSP, HASL, Lead-Free HASL	ENIG, Immersion Silver, Immersion Tin	Advanced finishes improve performance but raise material costs.

Substrate selection affects both the PCB fabrication cost and functional reliability. Common rigid substrates include fiberglass (FR4) and polyester,

balancing mechanical stability and affordability. FR4 remains the most cost-effective choice for standard applications and is widely available, reducing order lead times and pricing.

Flexible materials, such as polyimide, provide design flexibility but generally increase costs due to higher base prices and more complex handling during PCB assembly. Specialty substrates may be necessary for high-frequency or harsh-environment electronics, but increase material and processing expenses.

WellPCB recommends balancing performance requirements with budget constraints, selecting basic materials unless application demands justify alternatives.

Copper foil thickness and weight directly impact the PCB fabrication and assembly costs. Standard copper weights (1 oz or 2 oz) are the most

cost-effective and support common PCB and circuit designs without requiring extra prepreg layers or adding excessive weight.

Thicker or heavier copper improves current-carrying capacity and thermal management but increases material costs, manufacturing complexity, and transportation expenses due to added weight.

When higher copper thickness is not required for electrical performance, WellPCB advises selecting standard weights to reduce costs and simplify PCB assembly services.

Standard solder mask materials with common colors such as green, black, blue, and white are more affordable and available for faster turnaround.

Specialty colors or finishes increase processing time and require separate assembly steps, raising labor and material costs.

Silkscreen selection should balance visibility and durability. Using standard inks and avoiding special treatments reduces expenses while maintaining clear labeling for inspection and testing.

Surface finish choices influence both solderability and long-term performance. Basic finishes like OSP and HASL offer reliable solder joint formation

at lower pricing. LF HASL (lead-free HASL) provides RoHS compliance at a lower cost than advanced finishes like ENIG (electroless nickel immersion gold), which adds durability and improved solderability but significantly increases costs.

WellPCB evaluates each PCB order to match the surface finish to the design and performance requirements, recommending cost-effective finishes wherever possible, especially for prototype and small quantity production runs.

How to Order Your Low Cost PCB
in 5 Easy Steps

PCB Manufacturing and Order Review Process

Submit Your PCB Design

Upload your Gerber files or use our easy online PCB design tool to create your board layout. Make sure your files are complete and correctly formatted to ensure smooth processing and production accuracy.

Select Your PCB Specifications

Customize your order by choosing the technical specifications—number of layers, board dimensions, thickness, copper weight, solder mask color, surface finish, and more. Our intuitive interface helps you configure everything based on your project’s needs.

Get an Instant Quote

Once your design and specs are in place, you'll receive a transparent, instant quote. Pricing updates in real time as you modify options, so you can adjust your selections to match your budget before placing the order.

Confirm Order & Make Payment

Review your entire order for accuracy, including file previews and selected specs. After confirmation, proceed to secure checkout and choose your preferred payment method. You’ll receive an email confirmation with order details.

Production & Delivery

Your PCB moves into production immediately. We’ll keep you updated throughout the manufacturing process. Once completed, your boards are carefully packed and shipped to your door, with tracking information provided for your convenience.

When Should You Choose Low-Cost PCB
Assembly?

Low-cost PCB assembly is the best solution when budget limits must be balanced with high quality and functional reliability. It supports engineers, startups, and businesses developing prototype PCBs, small batch runs, or low-volume PCB assembly orders without compromising performance.

Why Choose WellPCB As Your Low-cost PCB
Assembly Service Provider?

WellPCB combines advanced PCB production technology with strict process control and responsive customer service to deliver low-cost PCB assembly without compromising quality.

All PCB assembly services are performed under ISO 9001, ISO 14001, IATF 16949, and IPC-A-610 Class 2 & 3 standards.

We maintain strict inspection protocols, including AOI, X-ray, and electrical testing, to certify that every printed circuit board assembly meets design and performance requirements.

Unlike some budget providers, WellPCB maintains strict process controls and full traceability even on low-volume, low-cost orders.

Our engineering team provides design reviews and Gerber file validation before production.

This minimizes errors and helps reduce costs by identifying potential manufacturability issues early.

We also offer guidance on optimizing PCB prototypes and production designs for cost-effective assembly.

WellPCB maintains strong relationships with global vendor networks, including Mouser, Digi-Key, Future Electronics, and WPG Holdings, to source

components efficiently and at competitive pricing.

We avoid counterfeit parts by working only with authorized distributors and certified suppliers.

All components have full traceability documentation to support quality control and regulatory compliance throughout the PCB assembly process.

We support prototype, low-volume, and full production batch runs.

Flexible order quantities and rapid turnaround options allow you to manage project costs and timelines effectively.

WellPCB offers full-service solutions, including PCB fabrication, PCB assembly, component sourcing, box builds, and solder stencil production.

This eliminates the need to coordinate multiple suppliers, saving time and reducing overhead costs.

Our team provides fast quoting, transparent communication, and dedicated technical support.

We assist with everything from initial board design to post-production testing, helping you navigate every stage of your low-cost PCB assembly projects.

Why Choose a Low-cost PCB Manufacturer?

WellPCB stands out among USA PCB manufacturers by delivering superior quality, advanced solutions, and unmatched reliability. With years of experience serving global markets, WellPCB has earned a reputation as one of the top PCB manufacturers in USA.

WellPCB specializes in multilayer PCBs for advanced electronic applications. You can order these boards with $100 off using our special offer, providing high complexity at competitive rates for demanding projects.

Hommer Zhao

Founder and Chief Editor – Hommer Zhao

Welcome! I’m Hommer Zhao, the founder and Chief Editor of WellPCB. With years of experience in the PCB industry, I’m committed to making sure our content is both accurate and helpful. We’re proud to serve a growing community of over 4,000 customers worldwide, and our goal is to provide you with the best resources and support. Your satisfaction is our top priority, and we’re here to help you every step of the way!

Jesse Holland

Technical Manager – Jesse Holland

Hi, I’m Jesse Holland, an Engineer and Technical Manager at WellPCB. With years of experience in PCB design and engineering, I’m here to ensure that every project we work on meets the highest technical standards. I lead our team, focusing on precision and innovation, collaborating closely with clients to provide tailored solutions and expert guidance. Whether you’re facing a complex design challenge or need advice on technical aspects, I’m here to ensure your project is a success from start to finish.

Nathan Jensen

Purchasing Manager – Nathan Jensen

Hi, I’m Nathan Jenson, the Purchasing Manager at WellPCB. I’m responsible for sourcing the best materials and components to ensure our products meet the highest quality standards. With my extensive experience in procurement, I work closely with suppliers to secure reliable and cost-effective solutions while maintaining strong relationships to support our operations. I aim to ensure every project runs smoothly by providing the resources needed to deliver on time and to your satisfaction.

Emma

Sales Manager – Emma

Hey, I am Emma, sales manager at WellPCB. I studied electronic science and technology at university and have served customers for PCB and PCB Assembly service for several years. 
I enjoy communicating with customers and our technicians to solve problems, and customers always say, "It's great to have you onboard". 
It is my pleasure and honour to be helpful. Contact me now, and you'll know.
